If no location is defined at the component level for your workorders, enter the default location for component backflush here. Please note: If this field is left empty, then the Disable Backflush Component Checking constant should also be toggled to disable backflush component checking.
The following options control the user's ability to complete a sequence when it is already completed:
During the WIP Receipt transaction the component availability is verified. Toggle this checkbox to disable this functionality. Please note: If there is no value entered for the Default WIP Backflush Location, this box should be toggled to disable the backflush component checking and avoid errors with processing work orders in NovoNexus.
Toggle this constant to keep the same work order number in the Work Order field of the Issue transaction until the work order number is changed. This feature allows the user to more quickly issue all of the components on a work order without having to re-enter the work order number each time.
Toggle this checkbox to enable the quantity field on the Print Workorder Labels function.
The following options control the user's ability to over-receive a Wip Receipt quantity:
This constant can be enabled along with custom functionality to automatically create a new work order when the Work Order Scrap function is used. Toggle the box to enable.
This constant controls the use of limits on the quantity entered in the Prod Receipt transaction. It works in conjunction with the limit set in the Prod Receipt QTY Limit constant. Any limit set is a per transaction limit. The options for this constant are as follows:
This setting is used with the Prod Receipt QTY Prompt Option to set a limit on quantity entered per transaction in the Prod Receipts function. To disable the limit, enter a zero in this field.
Use this constant to override the standard display in the Workorder Workbench function. VIEW_ACTIVE_WORKORDER_LIST is the default view.
Use this constant to override the sort order in the Workorder Workbench function. ORDER BY PRIORITY DESC, WP_NBR ASC is the default sort.
This function moves material from one work order sequence to another. No inventory updates are performed.
Enter the work order number. Once the work order number is entered, the item number will display in the informational field below it.
Enter the operation/sequence.
Please Note: Entering the work order number and operation combination into the Work Order field, using the format Work Order*Operation (for example 1507*20), will automatically place the numbers in the correct fields. This can be done either manually or by scanning a barcode that has the Work Order*Operation number in it.
The balance, or quantity remaining for that work order and operation will display in this informational field.
Fill in the quantity to move.
Use this field to set the complete flag on the sequence.
This function mirrors the ISSUE transaction in M2k. It is used to issue specific components to a work order.
Please note: The NovoNexus Issue Material transaction requires the material to be allocated to the work order already.
Enter the work order number. If the Keep Work Order in ISSUE screen constant is toggled, the work order number will remain in the Work Order field throughout subsequent transactions until the work order number is changed or the user exits the transaction.
Enter the item number to be issued. If needed, this field has a item lookup available. Entering either ?? or .. into the item number field will pull up a list of components available to issue for the work order. Only items with quantities remaining to be issued will show on this list.
Select the desired component using one of the following methods:
Please Note: The long part number or the superseded part number for an item may also be entered into the Item Number field to bring up the results for that item number. For example:
The applicable unit of measure for the item will be displayed here.
Enter the quantity to issue for this item.
Enter the location to which the item will be issued.
If the item being issued is serial tracked or lot traced, entry of serial numbers or lot number will be required after the Issue Location is entered.
Enter the Issue Reason Code for this transaction. Issue Reason Codes are defined in your ERP system.
If the item number being issued is serial tracked, the Serial Number Entry screen will open after the Issue Location is entered.
A valid serial number for an item with a status of On Hand must be entered for each item being issued.
Once all serial numbers are entered, the user will be redirected back to the Issue screen to complete the transaction.
If the item number being issued is lot traced, the Lot Entry screen will open after the Issue Location is entered.
Depending on the Lot Entry Screen Method set in Inventory Constants, one of the following Lot Entry screens will open.
Standard Lot Entry: Enter the lot number for the item being issued. The lot number is entered one time only.
Serial Lot Entry: Enter the lot number once for each quantity of the item being issued.
For example, if there are 10 items being issued, the lot number will need to be entered 10 times.
Once the lot number has been entered and accepted, the user will be redirected back to the Issue screen to complete the transaction.
This function mirrors the M2k WIP.RECEIPT transaction. It is used to record receipts to either STOCK or INSEPCT for a work order.
Enter work order number.
You may also enter an item number into the Work Order field to do a cross reference search for all open work orders for that item number. If you enter an item number, a new screen called Active Work Orders will open with the list of open work orders for the item entered:
The Active Work Orders screen also displays the date released, the scheduled due date, and the quantity already completed for each work order listed.
Select the desired work order number using one of the following methods:
The quantity remaining on the work order will display in this informational field.
Enter the location for the Wip Receipt.
Please Note: If a Default WIP Backflush location is set in the NovoNexus WIP Constants, this field will automatically populate with the default location.
Hit <tab> or <enter> to accept this default location, or change the location by entering a different one.
Enter the quantity for the WIP Receipt.
If the item being received is serial tracked or lot traced, entry of serial numbers or lot number will be required after the quantity is entered.
If the item number being received is serial tracked, the Serial Number Entry screen will open after the WIP Qty is entered.
Once all serial numbers are entered, the user will be redirected back to the WIP Receipt screen to complete the transaction.
If the item number being received is lot traced, the Lot Entry screen will open after the WIP Qty is entered.
Depending on the Lot Entry Screen Method set in Inventory Constants, one of the following Lot Entry screens will open.
Standard Lot Entry: Enter the lot number for the items being received. The lot number is entered one time only.
Serial Lot Entry: Enter the lot number once for each quantity of the item being received.
For example, if there are 10 items being received, the lot number will need to be entered 10 times.
Once the lot number has been entered and accepted, the user will be redirected back to the WIP Receipt screen to complete the transaction.
This function mirrors the M2k PROD.RECEIPTS transaction. It allows completion to be recorded against production orders (repetitive manufacturing).
Existing plans are used up in order. This is comparable to the ALL selection for Reference Number in M2k.
Enter the item number for the Production Receipt.
Please Note: The long part number or the superseded part number for an item may also be entered into the Item Number field to bring up the results for that item number. For example:
The applicable unit of measure for the item will be displayed here.
Enter the quantity to receive for this item.
Enter the location for the Production Receipt.
Please Note: The default location (set in your ERP system) for this item will automatically populate this field.
Hit <tab> or <enter> to accept this default location, or change the location by entering a different one.
If the item number being received is serial tracked, the Serial Number Entry screen will open after the Receipt Location is entered.
Once all serial numbers are entered, the user will be redirected back to the Prod Receipt screen to complete the transaction.
If the item number being received is lot traced, the Lot Entry screen will open after the Receipt Location is entered.
Depending on the Lot Entry Screen Method set in Inventory Constants, one of the following Lot Entry screens will open.
Standard Lot Entry: Enter the lot number for the items being received. The lot number is entered one time only.
Serial Lot Entry: Enter the lot number once for each quantity of the item being received.
For example, if there are 10 items being received, the lot number will need to be entered 10 times.
Once the lot number has been entered and accepted, the user will be redirected back to the Prod Receipt screen to complete the transaction.
Enter the work order number
The number entered here controls how many labels will print.
If the item on the work order is lot traced, this field will be available for the option of entering the item's lot number for printing on the label.
If the item on the work order is serial tracked, this field will be available for the option of entering the item's serial numbers for printing on the label.
The number entered here will print on the label.
Select a printer. Printer options are available in the dropdown list.
Hit the Print Label button to print the labels.

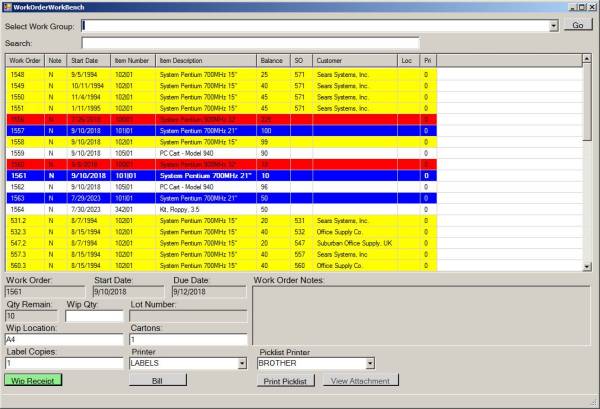

The Workorder Workbench offers a quick way to review and process a group of work orders. This function is a desktop only application. The Workorder Workbench does not currently support serial number entry.
The Workorder Workbench can be customized to allow the view to display by Work Order Group, work orders to sort by priority, lines to be color coded by item, and WIP Receipt locations to default to a specific location by work order. These customizations can be made in the ERP system and/or can be manually maintained in the SQL database. Clients interested in utilizing this custom functionality should contact NovoRoi Systems for training and setup assistance.
Use the selection bar and the GO button at the top of the screen to display a single Work Group or to display all Work Groups in the Workorder Workbench.
The Workorder Workbench grid displays the active work orders for the selected Work Group using the following columns:
Scroll or use the arrow keys to move between work orders. The selected work order will be highlighted in dark blue on the grid. The columns will automatically resize to fully display the information in the highlighted row.
The Workorder Workbench can be resized by dragging out the lower right-hand corner.
Any notes on the selected work order will display in this box.
The selected work order number is displayed here.
The start date on the work order is displayed here.
The due date on the work order is displayed here.
The quantity remaining on the work order is displayed here.
Enter the quantity for the WIP Receipt in this field.
If the item number being received is lot traced, the Lot Entry screen will open after the WIP Qty is entered.
Depending on the Lot Entry Screen Method set in Inventory Constants, one of the following Lot Entry screens will open.
Standard Lot Entry: Enter the lot number for the items being received. The lot number is entered one time only.
Serial Lot Entry: Enter the lot number once for each quantity of the item being received.
For example, if there are 10 items being received, the lot number will need to be entered 10 times.
Once the lot number has been entered and accepted, the user will be redirected back to the Workorder Workbench to complete the transaction.
If customizations are in place to set a default WIP Receipt location by work order, the default WIP Receipt location for the work order will display here. Otherwise, the Default WIP Backflush Location set in the NovoNexus WIP Constants will display.
Enter the number of cartons. One work order label will print for each carton quantity entered. For example, if 10 is entered for cartons, 10 work order labels will print. Carton quantity will be displayed on the labels to indicate the number of overall cartons. This is a required field. If a zero is entered for carton quantity, no labels will print.
Enter the number of copies to print for the work order labels. This field will pre-fill with a value of 1. Enter a different quantity if a value other than 1 is needed.
The user's default printer (as set in the Edit Users function on the NovoNexus System Admin Menu) will display here. Labels will be sent to this printer.
Hit the Bill button at any time to open up a listing of the Bill of Material for the selected Work Order and Item.
This function will generate a report for Sales WIP Transaction History (a work order created from a Sales Item Line Item type WG).
Enter the date for the start of your desired date range.
Enter the date for the end of your desired date range.
Dates may be entered in the following formats:
After the Start Date and End Date have been entered, click the Run Report button to display the report. Use the toolbar across the top of the display to change the view, print the report, etc.
Once the dates have been entered, the Cancel button will cancel the request and exit the date selection screen.
This function allows for both a Wip Receipt and Scrap transaction to happen as a single transaction. With customization and the constants setting enabled, a new work order to replace the scrapped item can be automatically generated as well. This function requires additional set up and training beyond standard WIP module use.
Clients interested in using this function should contact NovoRoi Systems for training and set up assistance.
This function allows for both a Prod Receipt and Scrap transaction to happen as a single transaction. This function requires additional set up and training beyond standard REP module use.
Clients interested in using this function should contact NovoRoi Systems for training and set up assistance.
This function displays transaction history for Wip Move transactions. Operation, Quantity, Complete flag, NovoNexus user, and details on time and date will be displayed for each transaction.
Enter the work order to be displayed. The specific operation to display will be entered in another field.
The applicable item number for the work order will be displayed here.
Enter the operation and hit <enter> to display the history for that operation.
To display the transaction history for all operations on the work order, enter ALL in the Operation prompt:
Enter the component item number to look up open work orders that contain that item.
A list of open work orders, the quantity required, the quantity issued, and the balance quantity will display.
Enter the work order number.
A chart detailing the work order Sequence Number, Work Center, Required Quantity, Completed Quantity and Work Center Description will display.
